CrossSense SmartNode Series — Product Overview

SmartNode connects field signals, sensors, meters and equipment status to cloud dashboards, alerts and reports — accessible anytime via web and mobile applications.

Designed for distributed sites where reliable runtime tracking, alarm notification and consumption visibility are required without the weight of a full SCADA deployment.

SmartNode SN-R1

What It Connects

Digital signals — dry contacts, status, trip alarms, door switches
Analog sensors — 4–20 mA and 0–10 V transmitters
RS485 / Modbus devices — meters, controllers, drives, gateways
BLE wireless sensors — temperature, humidity, asset trackers
Relay outputs — for local indication and basic actuation

What It Enables

Live status on web and mobile dashboards
Runtime & utilization tracking for machines and assets
Consumption & trends for utilities and energy
Alarm notifications with configurable rules
Historical reports and exportable data

System Flow

Sensors / Machines / Meters

DI · AI · Modbus · BLE

→

SmartNode

Acquire · buffer · transmit

→

Cloud Platform

Secure ingestion & storage

→

Web / Mobile / Alerts

Dashboards, reports, notifications

Key Features

Digital, analog, Modbus RS485 & BLE sensor support

Cloud-based real-time dashboard

Configurable alerts & alarm notifications

Runtime, utilization & downtime tracking

Consumption & trend monitoring

Web and mobile application access

Compact field deployment for distributed sites

Retrofit-ready for existing equipment

SmartNode Series Models

The series offers three models covering standard monitoring, LAN-connected monitoring, and lighter / low-cost deployments — all sharing the same cloud platform, dashboards and mobile application.

SN-R1

Standard Node

Balanced mix of digital inputs, analog sensors, relay outputs, RS485 devices and BLE sensors. Suitable for panels, utilities and machines.

SN-R1e

Ethernet Variant

For sites that need wired LAN connectivity. Provides RJ45 Ethernet by reducing digital inputs from 8 to 4.

SN-L1

Lite Node

Smaller monitoring jobs where fewer input points are required and cost needs to be kept low.

Model	DI	DO	Analog Inputs	RS485	Ethernet	BLE	Power
SN-R1	8 DI	2 DO	2 × 4–20 mA + 1 × 0–10 V	1 × RS485	—	Supported	12–36 VDC
SN-R1e	4 DI	2 DO	2 × 4–20 mA + 1 × 0–10 V	1 × RS485	1 × RJ45	Supported	12–36 VDC
SN-L1	4 DI	2 DO	2 × 4–20 mA	—	—	Supported	—

Specifications may evolve as the product line matures. Confirm exact model configuration at time of order.

Common Applications

Generator monitoring
Battery and solar system monitoring
Fuel tank and water tank monitoring
Cold room / warehouse temperature monitoring
Pump room monitoring
Machine runtime monitoring
Panel alarm aggregation
Remote site monitoring
Utility consumption visibility
Environmental monitoring

Platform At-a-Glance

Product type IoT monitoring node

Brand CrossSense

Dashboard Web & Mobile

Alerts Configurable

Inputs DI · AI · RS485 · BLE

Outputs Relay outputs

Deployment Retrofit, compact

Typical users Facilities · utilities · factories · telecom

Get in touch: For configuration guidance, model selection or a site-specific proposal, reach out to the CrossSense team. info@cheetaltech.com · cheetaltech.com

CrossSense Mobile App

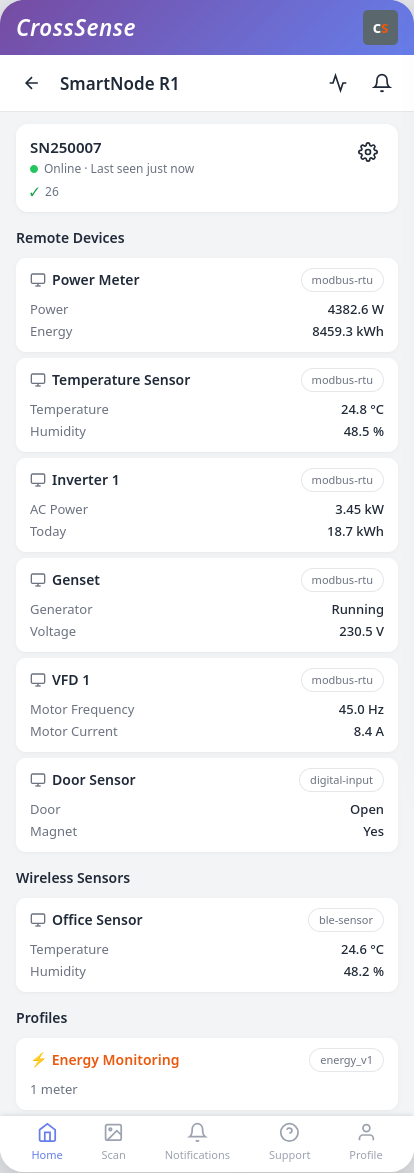

Device Overview

Generator Status

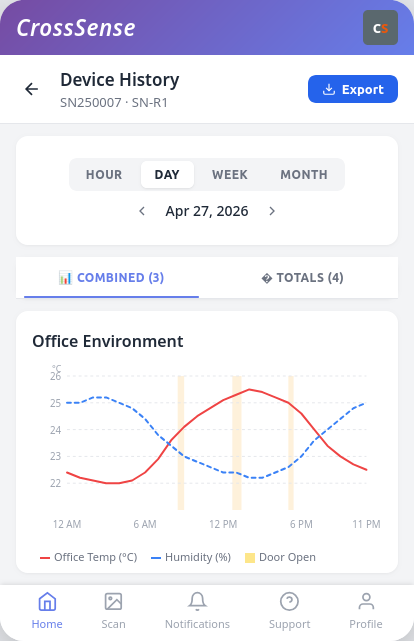

Trends & History

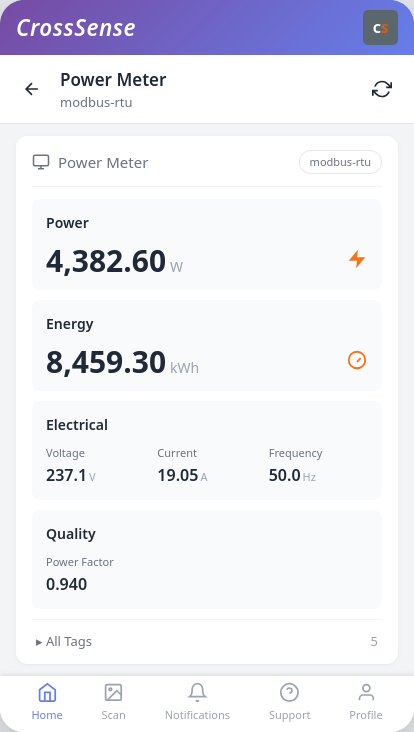

Power Analytics
