PRODUCT OVERVIEW

Web-Enabled Drop-In Solutions

Remote monitoring and control made simple with built-in web servers and Modbus/TCP integration.

Remote Relay Control

Our Ethernet I/O products provide an easy and reliable way to monitor and control electric devices over a network.

Built-in web servers for browser access
No special software or apps required
No drivers to install or monthly subscriptions
Rock-solid performance and reliability

Industrial Automation

Seamlessly integrate into SCADA and industrial automation systems using standard protocols.

Modbus/TCP for SCADA integration

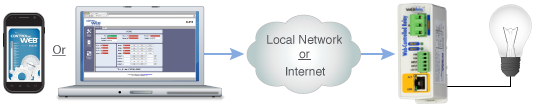

Stand-alone operation out of the box

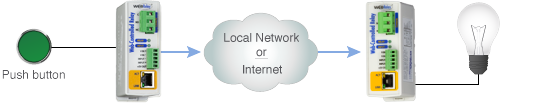

Peer-to-peer linking over IP networks
No external controller required

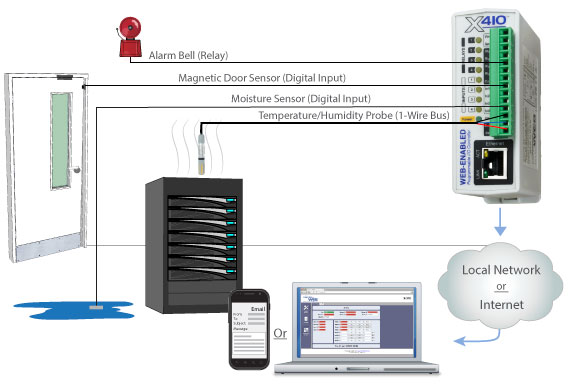

Data Acquisition & Monitoring

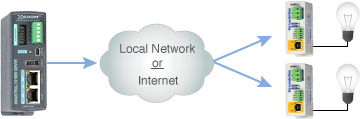

Use as Modbus/TCP cards to expand your SCADA system or as standalone monitoring devices.

Read digital inputs and temperature sensors
Control digital outputs via Modbus commands
Built-in web server for direct monitoring
Perfect for SCADA expansion

Mobile App Support

CBW Mobile app for iPhone and Android integrates with all ControlByWeb Ethernet I/O products.

Control Ethernet relays and digital inputs
Monitor analog inputs and sensors
Temperature and humidity monitoring
No fees or subscription required

PRODUCT LINE

Web Relays

Ethernet and Wi-Fi enabled relays with built-in web servers for remote control and monitoring.

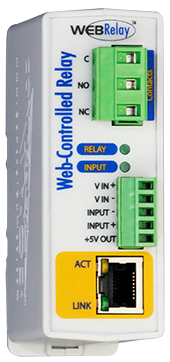

WebRelay™ | Single Relay & Input Module

WebRelay is an electrical relay with a built-in web server. The relay can be turned on, off, or pulsed using a web browser. It has a long history of reliable operation in many applications including remote reboot, industrial control, security, and remote control and monitoring.

Features:

No programming required
Full control using a standard web browser or text-based XML messages
Can operate as a Modbus/TCP slave
Password protected
12A relay contacts
ON/OFF or Pulsed relay modes
Optically-isolated input for monitoring and control
Remote relay control (peer-to-peer)
Auto-Reboot controller mode for remote reboot of network devices
Selectable TCP ports
Removable terminal connectors included
DIN rail or wall-mount
Power supply: 9-28VDC or POE and/or 9-28VDC

WebRelay Wireless™ | Single Relay, Single Input, Up to 4 Temperature Sensors

The WebRelay Wireless™ is an easy to use Wi-Fi enabled relay, temperature/humidity monitor and status alerting device. Built-in relay for controlling lights, motors and other relatively high current loads, a digital input to monitor and report the status of switch-closure sensors and a "1-Wire" port for connecting up to four digital temperature/humidity 1-Wire sensors.

Features:

Built-in high current relay
Optically-isolated digital input
Up to 4 temperature sensors
Wireless Wi-Fi 802.11 b/g/n
Antenna included
Transmission range up to 250ft
Logging of the input, counter, temperature, humidity, relay state, and Vin
BASIC script support for advanced flexibility
Customizable web-based Control Page
Send email alerts (up to 8 email addresses) based on user-defined conditions
Supports encrypted email servers, such as Gmail
Static or DHCP IP address configuration
Real-Time clock with NTP server synchronization
Automatic daylight savings and leap year adjustment
No software required
XML, Modbus/TCP and Remote Services
Field updatable
Removable terminal connectors for easy installation

ADVANCED CONTROLLERS

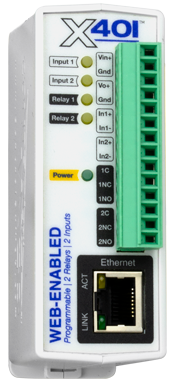

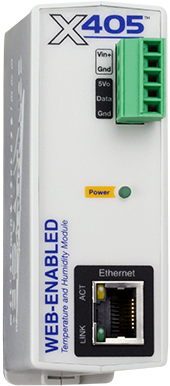

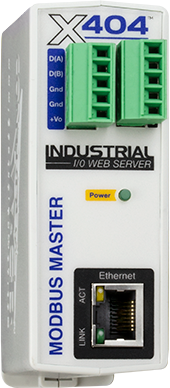

X-400 Series

Advanced controllers with task builder, peer-to-peer communication, and on-device logic for sophisticated automation.

X-400 Series Features

Task Builder: Easily create custom logic, no scripting necessary
P2P Communication: Share real-time sensor states with other ControlByWeb devices
Email/Text Alerts: Customizable email/text alerts based on sensor states
On-Device Logic: All logic occurs on device, no cloud necessary
Web-Enabled: Monitor sensor status using a standard web browser
Logging/Graphing: Log and graph sensor states over time
Encryption: Secure communication and data protection
Standard Modbus TCP: Easy integration with existing systems

Learn More About Full Range
